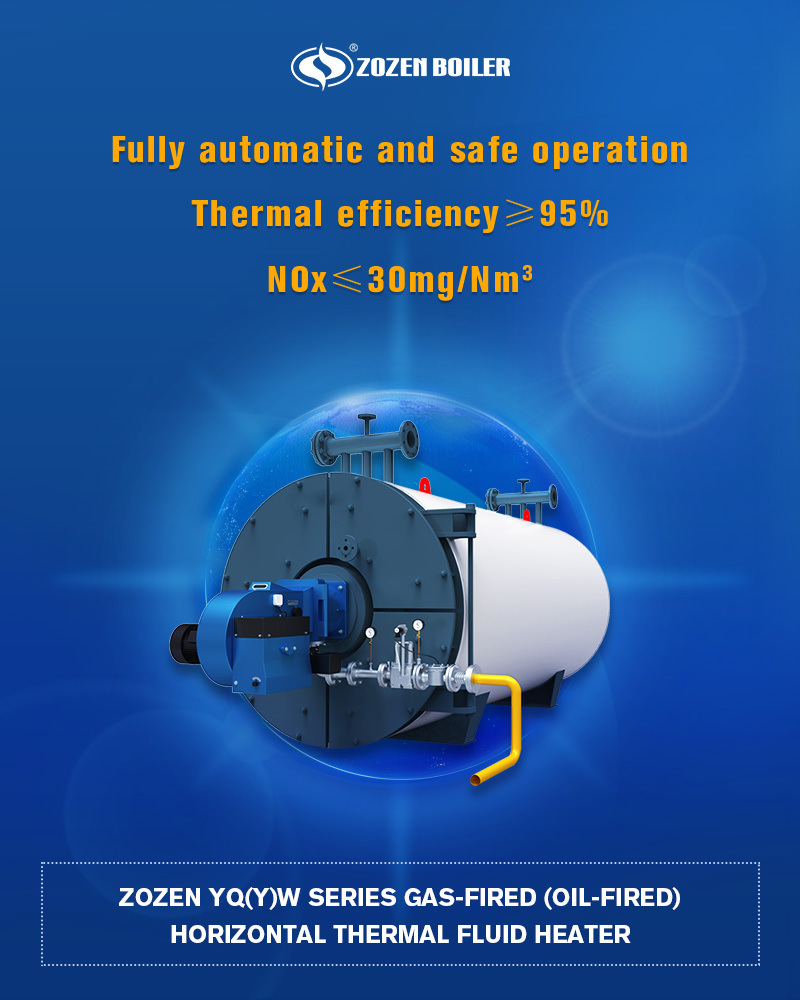

YQ(Y)W series gas-fired/oil-fired horizontal thermal fluid heater
Capacity :700-14000 KW
Pressure:0.8-1.0 MPA
natural gas, coke oven gas

Petroleum, chemical, chemical fiber, pharmaceutical

YQ(Y)W series gas-fired/oil-fired horizontal thermal fluid heater
Brief introduction:

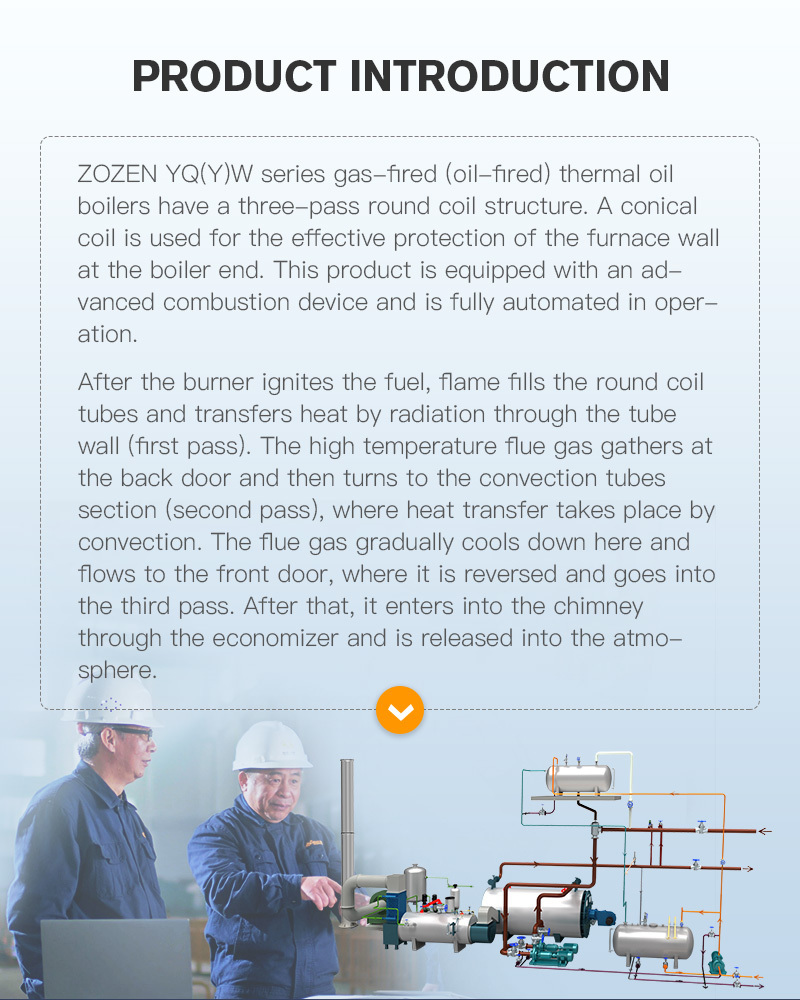

YQ(Y)W series gas-fired/oil-fired thermal oil boilers have a three-pass round coil structure. A conical coil is used for the effective protection of the furnace wall at the boiler end. This product is equipped with an advanced combustion device and is fully automated in operation. After the burner ignites the fuel, flame fills the round coil tubes and transfers heat by radiation through the tube wall (first pass). The high temperature flue gas gathers at the back door and then turns to the convection tubes section (second pass), where heat transfer takes place by convection. The flue gas gradually cools down here and flows to the front door, where it is reversed and goes into the third pass. After that, it enters into the chimney through the economizer and is released into the atmosphere.

This type of heater is delivered as a whole, and is installed on site, it only needs to connect thermal gas(oil) piping and electricity to start operation. The heater has four heating areas: furnace radiation heating area, the first convection tube bundle heating area, the second convection tube bundle heating area and economizer (waste heat boiler).

Product advantages:
Digitized manufacture

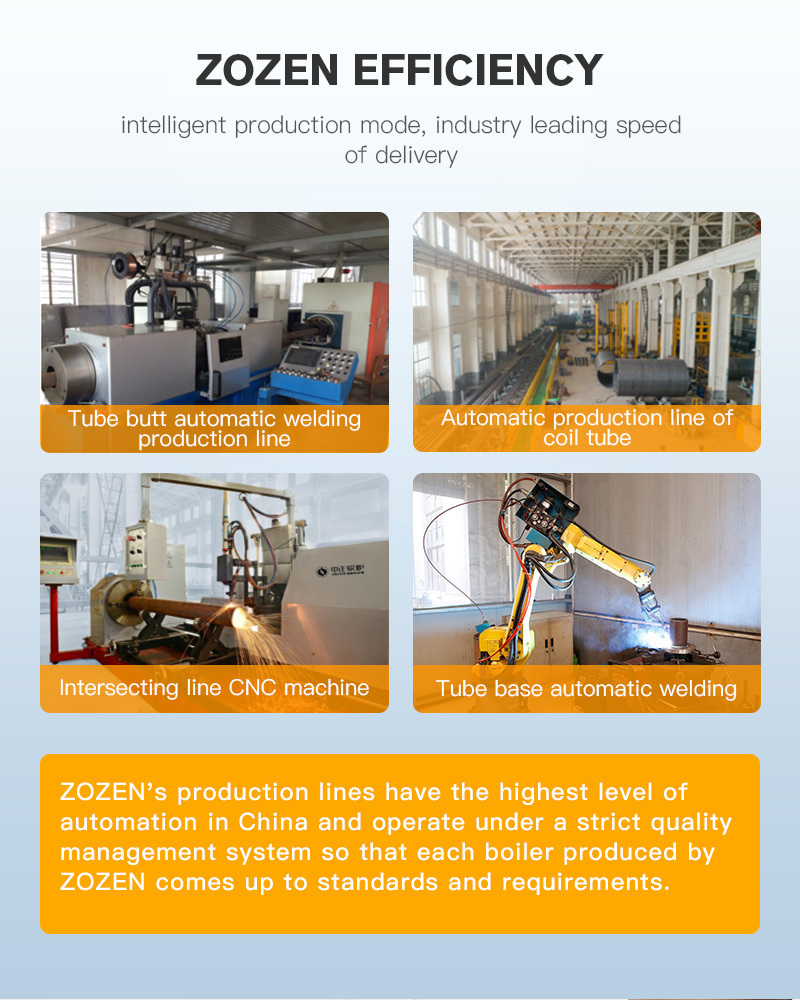

  • The laying-off of steel tube adopts CNC 3D laser cutting machine.
  • The manufacture of round coil tube adopts CNC coil tube automatic production line. Once-forming and no need for plastic .

Full argon arc welding
  • The tube butt adopts argon arc welding technique and the seams will be done x ray real-time imaging, preventing unqualified seams from entering coil production line .

Easy operation
  • Heater is wholly assembled before delivery, it is easy for installation, debugging and operating.

  • Fully automatic operating, burning, liquid level of high level tank, outlet temperature and flow rate are adjusted automatically and self-protected.

  • The inlet and outlet with end flanges and flanged cover structure facilitate the installation and layout of tubeline in boiler house.

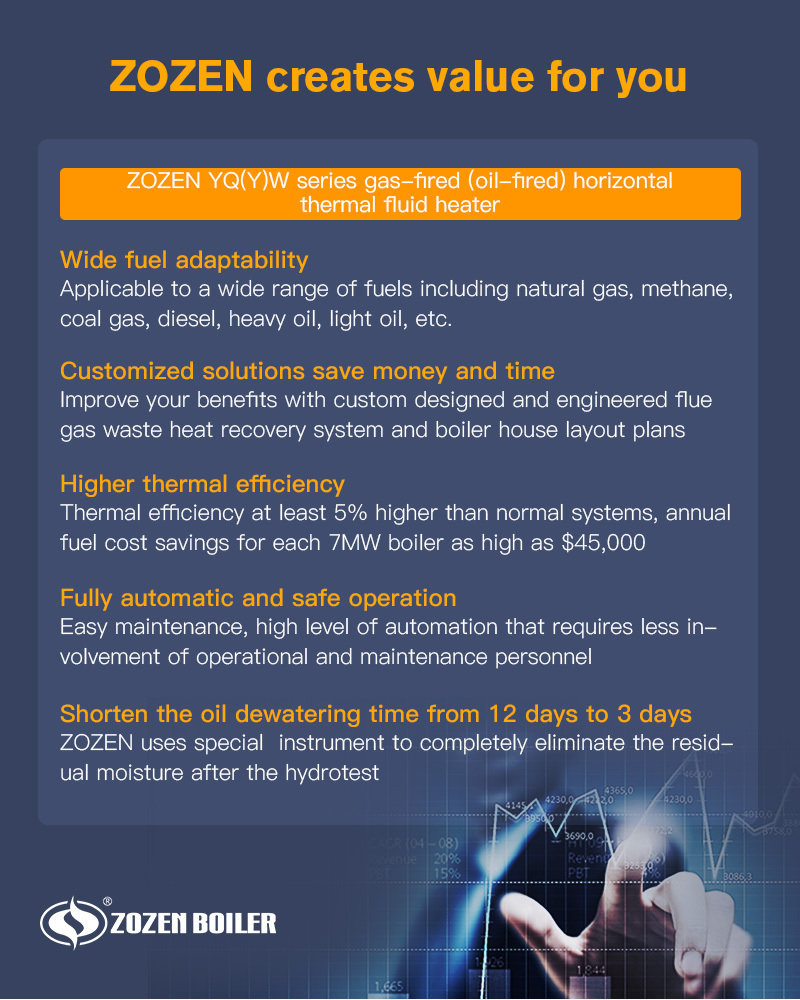

Less fuel consumption
  • Internal side adopts good insulation material, outside uses stainless steel plate, which can mostly reduce heat lost and make working environment better.

  • Multilayers closely spaced tube bundle and steel rod is used to seal and fix, completely eradicating short circuit of flue gas.

  • Before delivery, the residue moisture is removed completely, so the system draining period is reduced to 2 days from 12 days.
Safely operation
  • The inner coil tube has bigger flow rate, so it is more stable under high temperature operation.

  • Conical coil effectively protects the furnace wall at the end of heater and burner on the top.

Detailed introduction:
Zozen Boioer Co., Ltd. is one of the most powerful industrial boiler manufacturing enterprise in ChinaYQW series gas-fired horizontal thermal fluid heater is energy conservation, low emissions, and thermal efficiency is higher than 80%, high level of automationThe structure of YQW series gas-fired horizontal thermal fluid heaterThe advantage of YQW series gas-fired horizontal thermal fluid heaterZozen Boiler is largest industrial boiler manufacturer, annual production scale exceeds 2000 sets of boilersZozen Boiler has the most automatical industrial boiler production line in China and a strict quality management system to ensure the qualityThe unique customized steam system solution of Zozen Boiler enables customers to achieve the maximum energy saving and lowest emission
